Examining EOD Duration from Raw Recordings

Questions

How do we load JSON EOD recordings into R?
How is EOD duration measured from a raw waveform?
Did 11-ketotestosterone treatment change EOD duration over time?

Objectives

Load JSON recording files into R using the jsonlite package
Navigate a list of recording objects to extract waveform data and metadata
Visualize a raw EOD waveform using ggplot2
Measure EOD duration by applying a threshold to a normalized waveform
Build a tidy dataset by applying a duration function across many files
Interpret a faceted comparison plot of EOD duration across treatment groups

Introduction

In the previous episodes, you learned how testosterone shapes the electric organ discharge (EOD) in Brienomyrus brachyistius, and you performed the implantation procedure yourself. Now it’s time to analyze the data.

EOD recordings were captured daily over 5 days for animals implanted with either 11-ketotestosterone (11-kt) or a blank control. Each recording session is stored as a JSON file containing multiple trials. Our goal is to:

Load a raw EOD waveform and visualize it
Write a function that measures EOD duration from any recording file
Apply that function across all recording sessions to build a dataset
Visualize how EOD duration changes over time for each treatment group

Loading EOD Recording Files in R

JSON files can be read in R using the jsonlite package. The read_json() function returns a list that maps directly onto the file structure.

library(jsonlite)

eod_data <- read_json("data/eod_duration/BB_T48_DAY0_MAY7.json")

cat("Number of recordings:", length(eod_data), "\n")

Number of recordings: 11

Each element of eod_data is one recording trial, stored as a named list. Use names(eod_data[[1]]) to see the available fields and $ to access them.

Challenge 1: Explore the recording metadata (5 min)

Using the eod_data object already loaded, print the specimen number, species, temperature, sampling rate, and number of waveform samples for the first recording trial.

Hint: names(eod_data[[1]]) shows the available fields.

Solution

names(eod_data[[1]])
cat("Specimen:", eod_data[[1]]$specimenno, "\n")
cat("Species: ", eod_data[[1]]$species, "\n")
cat("Temp:    ", eod_data[[1]]$temp, "\n")
cat("Rate:    ", eod_data[[1]]$Rate, "\n")
cat("Samples: ", length(eod_data[[1]]$wave), "\n")

Visualizing an EOD Waveform

We convert sample indices to milliseconds using the sampling rate stored in the file, then plot with ggplot2.

library(ggplot2)

rate_hz <- eod_data[[1]]$Rate
wave <- unlist(eod_data[[1]]$wave)
p1_idx <- which.max(wave)
time_ms <- (seq_along(wave) - p1_idx) / rate_hz * 1000

waveform_df <- data.frame(time_ms = time_ms, voltage = wave)

ggplot(waveform_df, aes(x = time_ms, y = voltage)) +
  geom_line(linewidth = 0.6) +
  coord_cartesian(xlim = c(-2, 2)) +
  theme_classic() +
  labs(
    x = "Time (ms)",
    y = "Voltage (V)",
    title = paste("Raw EOD waveform —", eod_data[[1]]$specimenno, "Day 0")
  )

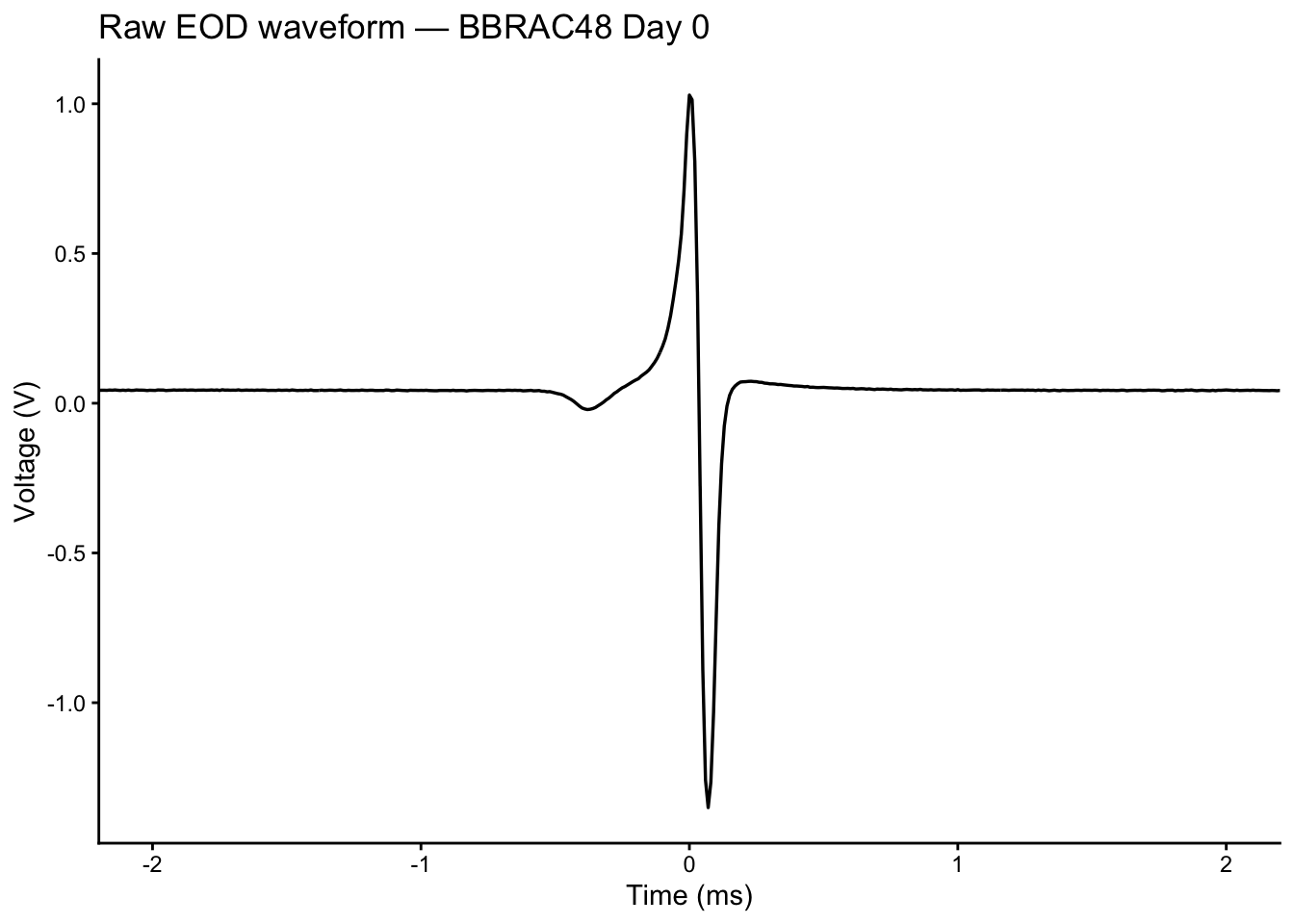

Line plot of a single EOD waveform showing voltage in volts on the y-axis and time in milliseconds on the x-axis. The waveform has a characteristic biphasic shape with a positive P1 peak followed by a negative P2 trough. — A single raw EOD waveform recorded from *B. brachyistius*. The biphasic waveform is characteristic of mormyrid electric fish.

Challenge 2: Compare waveforms across recording sessions (5 min)

The Day 0 waveform for BB48 is already loaded as eod_data. Now load the Day 1 recording (data/eod_duration/BB_T48_DAY1_MAY8.json) and plot both waveforms together. Do the shapes look similar?

Solution

eod_day1 <- read_json("data/eod_duration/BB_T48_DAY1_MAY8.json")
wave1 <- unlist(eod_day1[[1]]$wave)
p1_idx1 <- which.max(wave1)
time1_ms <- (seq_along(wave1) - p1_idx1) / eod_day1[[1]]$Rate * 1000

# Normalize each waveform to peak-to-peak = 1 so amplitudes are comparable
wave0_norm <- wave / (max(wave) - min(wave))
wave1_norm <- wave1 / (max(wave1) - min(wave1))

df_compare <- rbind(
  data.frame(time_ms = time_ms, voltage = wave0_norm, session = "Day 0"),
  data.frame(time_ms = time1_ms, voltage = wave1_norm, session = "Day 1")
)

ggplot(df_compare, aes(x = time_ms, y = voltage, color = session)) +
  geom_line(linewidth = 0.6) +
  coord_cartesian(xlim = c(-2, 2)) +
  theme_classic() +
  scale_colour_manual(values = c("Day 0" = "grey50", "Day 1" = "tomato")) +
  labs(
    x = "Time (ms)", y = "Normalized voltage",
    title = "BB48 EOD waveforms — Day 0 vs Day 1",
    color = NULL
  )

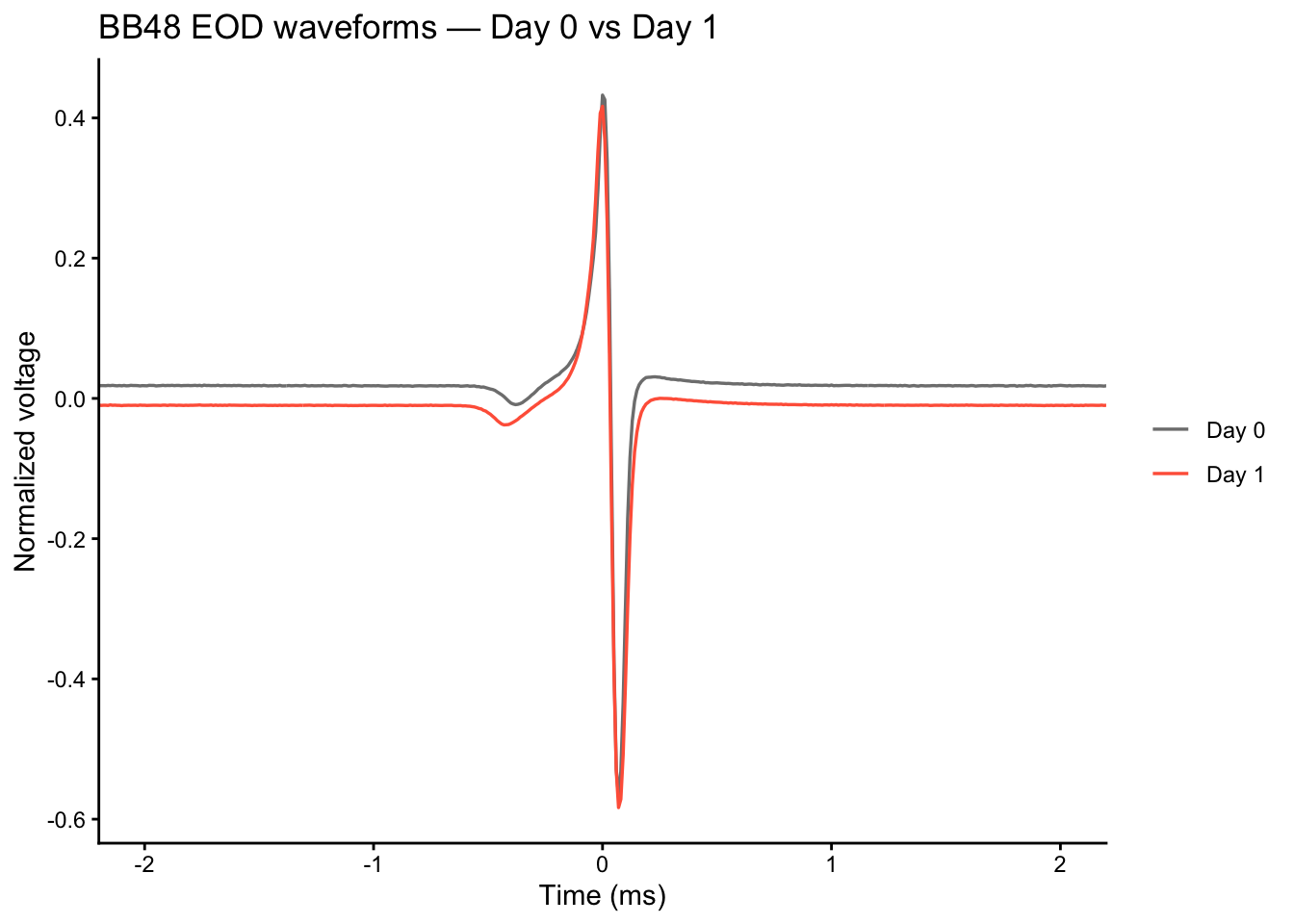

These are the first two days of recording for BB48, before treatment has had time to act. The waveform shapes should be very similar.

Measuring EOD Duration

EOD duration is not read directly from the file — it must be calculated from the waveform. The standard approach is:

Normalize the waveform so that the peak-to-peak amplitude = 1
Apply a threshold (typically 10% of the maximum absolute value) to define where the EOD “starts” and “ends”
Calculate duration as the time elapsed between the first and last threshold crossings

# 1. Normalize to peak-to-peak = 1
wave_norm <- wave / (max(wave) - min(wave))

# 2. Apply 10% threshold
threshold <- 0.1 * max(abs(wave_norm))
above_thresh <- which(abs(wave_norm) > threshold)

start_idx <- min(above_thresh)
end_idx <- max(above_thresh)

# 3. Duration in milliseconds
duration_ms <- (end_idx - start_idx) / rate_hz * 1000
cat("EOD duration (10% threshold):", round(duration_ms, 3), "ms\n")

EOD duration (10% threshold): 0.25 ms

We can visualize the threshold on the normalized waveform to see exactly which part of the signal is being measured:

norm_df <- data.frame(time_ms = time_ms, voltage = wave_norm)

ggplot(norm_df, aes(x = time_ms, y = voltage)) +
  geom_line(linewidth = 0.6) +
  geom_hline(
    yintercept = c(threshold, -threshold),
    linetype = "dashed", color = "steelblue", linewidth = 0.5
  ) +
  geom_vline(
    xintercept = c(time_ms[start_idx], time_ms[end_idx]),
    linetype = "dashed", color = "tomato", linewidth = 0.5
  ) +
  coord_cartesian(xlim = c(-2, 2)) +
  theme_classic() +
  labs(
    x     = "Time (ms)",
    y     = "Normalized voltage",
    title = "EOD duration measurement (10% threshold)"
  )

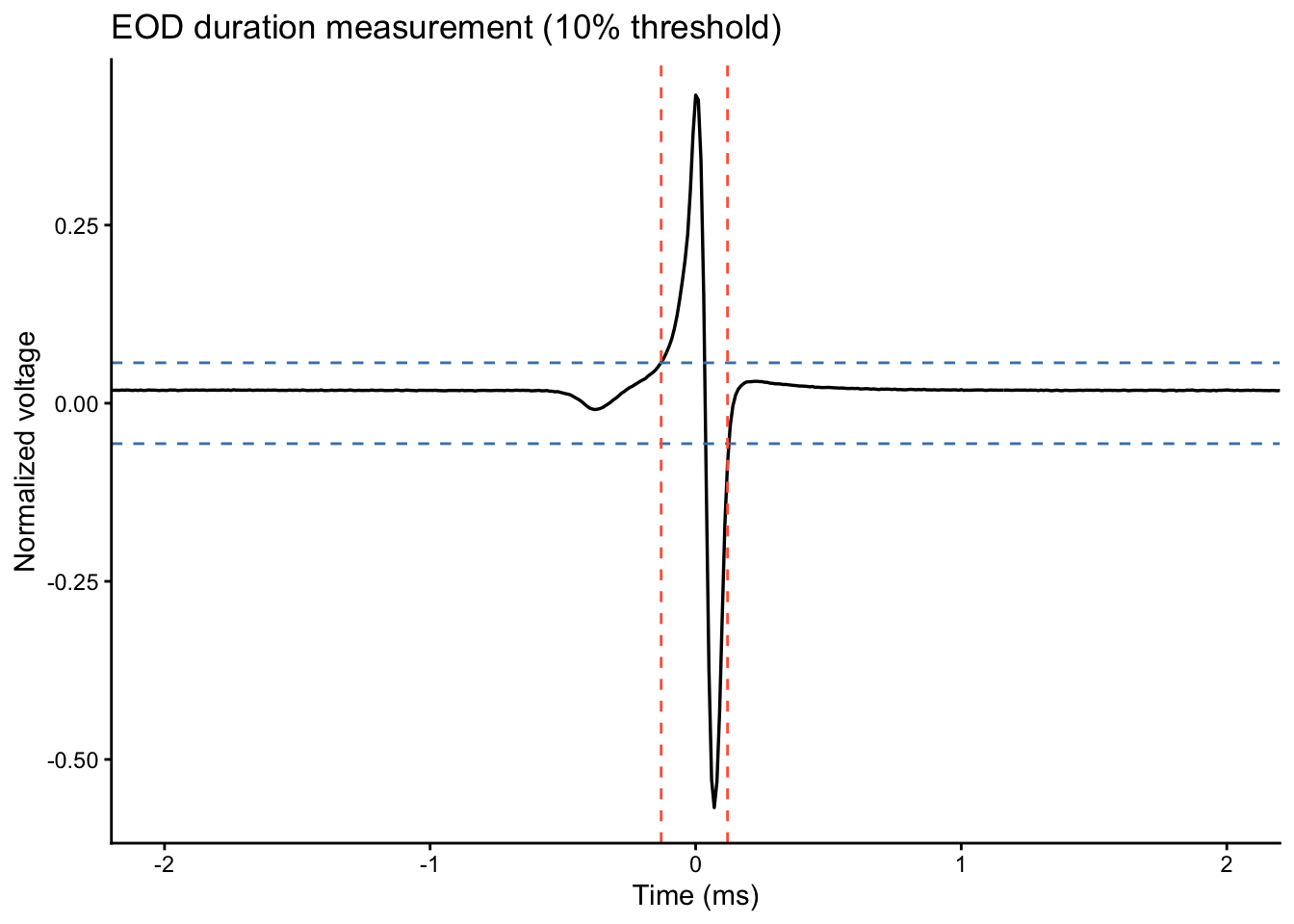

Normalized EOD waveform with horizontal dashed lines at +10% and -10% of the peak amplitude. Vertical dashed lines mark the measured start and end of the EOD, highlighting the duration window. — Threshold-based EOD duration measurement on the normalized waveform.

Challenge 3: Sensitivity of the threshold (5 min)

Repeat the duration calculation using a 20% threshold instead of 10%. How does the measured duration change, and why?

This is important: the choice of threshold is an analytical decision that must be reported in any publication.

Solution

threshold_20 <- 0.2 * max(abs(wave_norm))
above_20 <- which(abs(wave_norm) > threshold_20)

duration_20ms <- (max(above_20) - min(above_20)) / rate_hz * 1000
cat("Duration at 20% threshold:", round(duration_20ms, 3), "ms\n")
cat("Duration at 10% threshold:", round(duration_ms, 3), "ms\n")

A higher threshold excludes the low-amplitude tails of the waveform, making the measured duration shorter. Neither threshold is “wrong” — but the choice must be consistent across all animals in a study and clearly reported.

Building a Dataset Across All Recording Sessions

Now that we know how to measure EOD duration from a single file, we can apply the same logic to every recording session in the study. Rather than computing durations by hand for each file, we write a function and let R do the work.

The study metadata is stored in recordings.csv, which maps each JSON file to its animal, day, and treatment group:

library(dplyr)

metadata <- read.csv("data/eod_duration/all_surviving_recordings.csv")
metadata$Treatment <- as.factor(metadata$Treatment)

metadata

                        file specimenno day Treatment Comment
1      BB_T48_DAY0_MAY7.json       BB48   0     11-kt      NA
2      BB_T48_DAY1_MAY8.json       BB48   1     11-kt      NA
3      BB_T48_DAY2_MAY9.json       BB48   2     11-kt      NA
4     BB_T48_DAY3_MAY10.json       BB48   3     11-kt      NA
5     BB_T48_DAY4_MAY11.json       BB48   4     11-kt      NA
6  BB_T49INJ_DAY0_MAY12.json    BB49INJ   0     11-kt      NA
7  BB_T49INJ_DAY1_MAY13.json    BB49INJ   1     11-kt      NA
8  BB_T49INJ_DAY2_MAY14.json    BB49INJ   2     11-kt      NA
9  BB_T49INJ_DAY3_MAY15.json    BB49INJ   3     11-kt      NA
10 BB_T49INJ_DAY4_MAY16.json    BB49INJ   4     11-kt      NA
11     BB_T50_DAY0_MAY7.json       BB50   0   control      NA
12     BB_T50_DAY1_MAY8.json       BB50   1   control      NA
13     BB_T50_DAY2_MAY9.json       BB50   2   control      NA
14    BB_T50_DAY3_MAY10.json       BB50   3   control      NA
15    BB_T50_DAY4_MAY11.json       BB50   4   control      NA
16 BB_T51INJ_DAY0_MAY12.json    BB51INJ   0   control      NA
17 BB_T51INJ_DAY1_MAY13.json    BB51INJ   1   control      NA
18 BB_T51INJ_DAY2_MAY14.json    BB51INJ   2   control      NA
19 BB_T51INJ_DAY3_MAY15.json    BB51INJ   3   control      NA
20 BB_T51INJ_DAY4_MAY16.json    BB51INJ   4   control      NA

We write a small function that takes a file path, loads the JSON, computes EOD duration for every trial, and returns the mean:

mean_eod_duration <- function(file_path, threshold = 0.1) {
  recs <- read_json(file_path)
  durations <- sapply(recs, function(rec) {
    w <- unlist(rec$wave)
    rate <- rec$Rate
    w_norm <- w / (max(w) - min(w))
    thresh <- threshold * max(abs(w_norm))
    above <- which(abs(w_norm) > thresh)
    (max(above) - min(above)) / rate * 1000
  })
  mean(durations)
}

We then apply this function to every row in the metadata table:

metadata$EOD <- sapply(
  file.path("data/eod_duration", metadata$file),
  mean_eod_duration
)

head(metadata)

                       file specimenno day Treatment Comment       EOD
1     BB_T48_DAY0_MAY7.json       BB48   0     11-kt      NA 0.2472727
2     BB_T48_DAY1_MAY8.json       BB48   1     11-kt      NA 0.2480000
3     BB_T48_DAY2_MAY9.json       BB48   2     11-kt      NA 0.2963636
4    BB_T48_DAY3_MAY10.json       BB48   3     11-kt      NA 0.3650000
5    BB_T48_DAY4_MAY11.json       BB48   4     11-kt      NA 0.4009091
6 BB_T49INJ_DAY0_MAY12.json    BB49INJ   0     11-kt      NA 0.2030769

Longitudinal trajectory

With the full dataset assembled, we can visualize how EOD duration changes across the 5-day experiment for each treatment group. Points show the group mean; error bars show ±1 standard deviation.

ggplot(metadata, aes(x = day, y = EOD, group = Treatment, color = Treatment)) +
  stat_summary(
    fun = "mean",
    geom = "pointrange",
    fun.max = function(x) mean(x) + sd(x),
    fun.min = function(x) mean(x) - sd(x),
    position = position_dodge(width = 0.2, preserve = "total"),
    size = 0.7,
    fatten = 0.5
  ) +
  scale_x_continuous(name = "Day", breaks = 0:4) +
  scale_y_continuous(
    name   = "EOD duration (ms)",
    breaks = scales::breaks_pretty(10)
  ) +
  scale_colour_manual(values = c("11-kt" = "tomato", "control" = "grey40")) +
  theme_classic() +
  theme(
    axis.text    = element_text(size = 9),
    legend.text  = element_text(size = 8),
    legend.title = element_text(size = 9)
  )

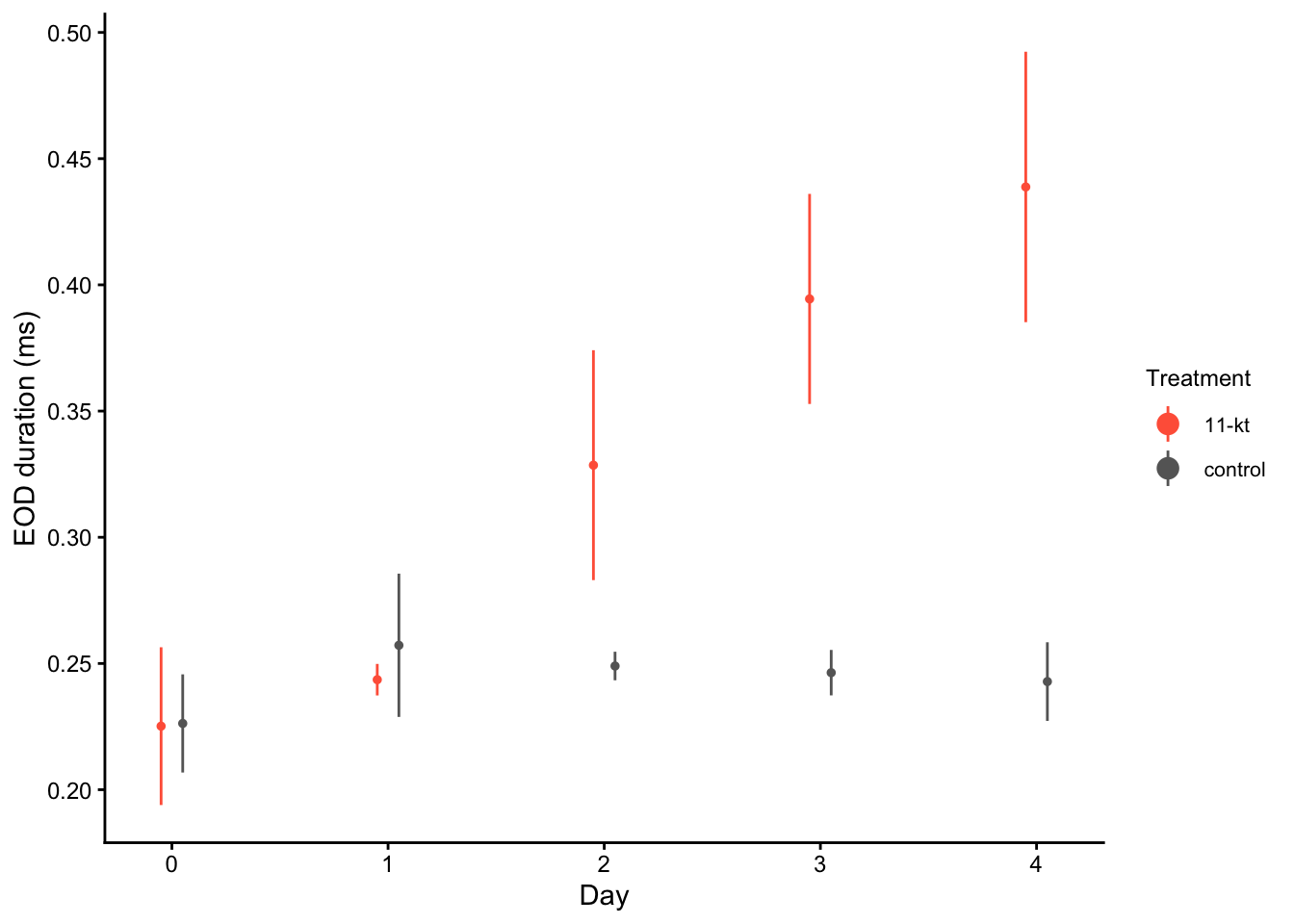

Line plot showing mean EOD duration in milliseconds on the y-axis and experimental day on the x-axis, with separate colored lines for the 11-kt and control groups. Error bars represent one standard deviation. — Mean EOD duration (±SD) across experimental days by treatment group.

Visualizing Waveform Shape Change by Individual

Looking at the raw waveforms makes the treatment effect intuitive. Here we load the Day 0 and Day 4 recordings for each fish, normalize every waveform to a peak-to-peak amplitude of 1, and centre on the P1 peak. Overlaying the two traces for each animal shows directly how the waveform lengthens — or stays the same — depending on treatment.

load_waveform_norm <- function(file_path) {
  recs <- read_json(file_path)
  rec <- recs[[1]]
  w <- unlist(rec$wave)
  rate <- rec$Rate
  p1_idx <- which.max(w)
  w_norm <- w / (max(w) - min(w))
  data.frame(
    time_ms      = (seq_along(w) - p1_idx) / rate * 1000,
    voltage_norm = w_norm
  )
}

d0d2 <- metadata %>% filter(day %in% c(0, 4))

waveform_overlay <- bind_rows(lapply(seq_len(nrow(d0d2)), function(i) {
  fp <- file.path("data/eod_duration", d0d2$file[i])
  df <- load_waveform_norm(fp)
  df$fish_label <- paste0(d0d2$specimenno[i], " (", d0d2$Treatment[i], ")")
  df$Day <- paste0("Day ", d0d2$day[i])
  df
}))

ggplot(waveform_overlay, aes(x = time_ms, y = voltage_norm, color = Day)) +
  geom_line(linewidth = 0.6, alpha = 0.85) +
  coord_cartesian(xlim = c(-1.5, 3)) +
  facet_wrap(~fish_label, ncol = 2) +
  scale_colour_manual(values = c("Day 0" = "grey50", "Day 4" = "tomato")) +
  theme_classic() +
  theme(
    strip.background = element_blank(),
    strip.text       = element_text(face = "bold"),
    legend.position  = "top"
  ) +
  labs(
    x     = "Time (ms)",
    y     = "Normalized voltage",
    color = NULL,
    title = "EOD waveforms by individual: Day 0 vs Day 4"
  )

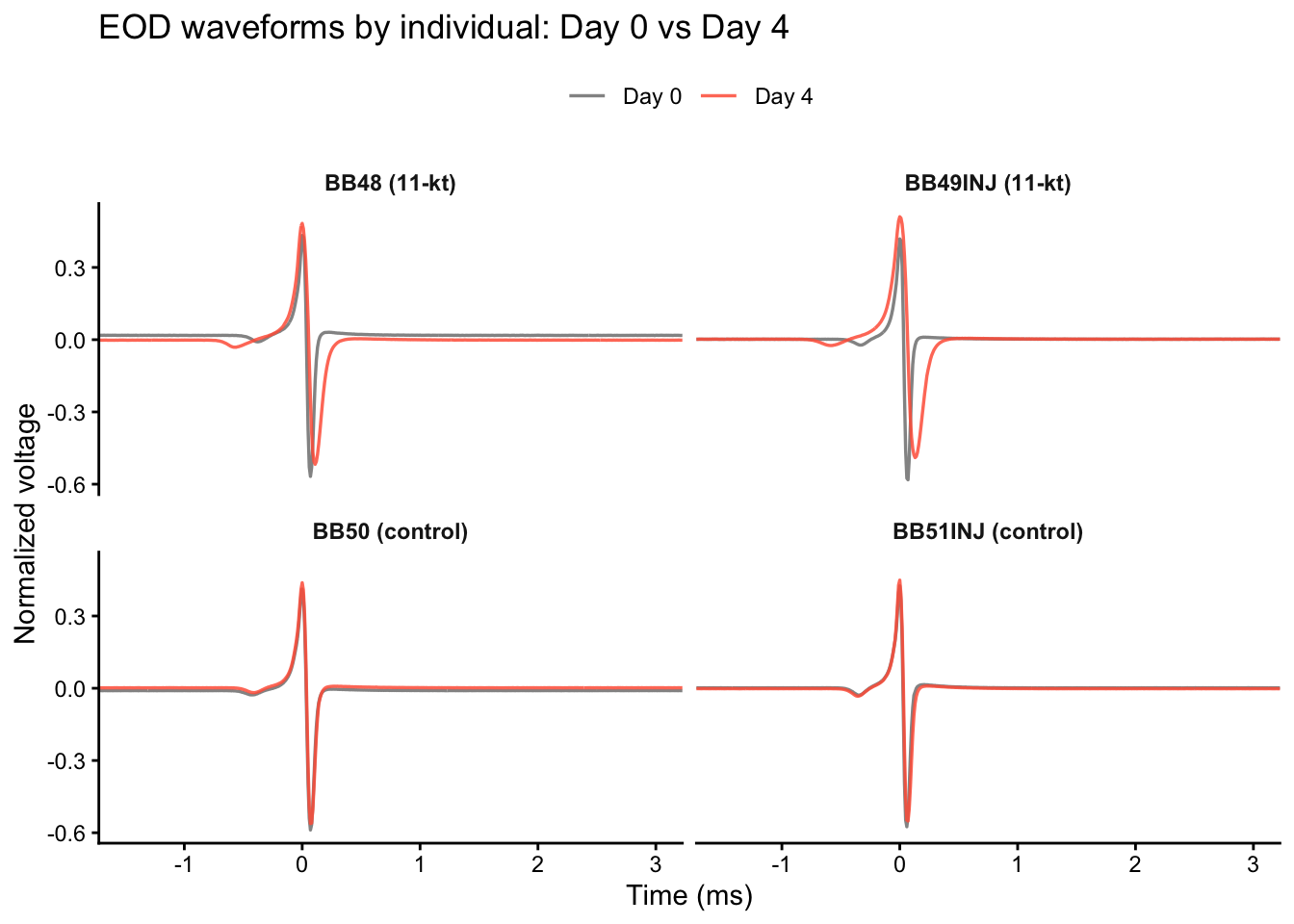

Four faceted panels, one per fish. Each panel shows two overlaid normalized EOD waveforms: Day 0 in grey and Day 4 in red, centred on the P1 peak. The two 11-kt fish show a clear rightward extension of the waveform by Day 4; the two control fish waveforms are nearly identical across days. — Day 0 (grey) and Day 4 (red) EOD waveforms for each individual fish, normalized to peak-to-peak amplitude and centred on P1. Waveforms from the 11-kt-treated fish (BB48, BB49INJ) show a lengthened P2 phase by Day 4; control fish (BB50, BB51INJ) are largely unchanged.

Key Points

jsonlite::read_json() loads JSON files as nested R lists; each recording trial is a named list with fields like wave, Rate, temp, and specimenno
EOD duration is defined by a threshold criterion applied to the normalized waveform — the choice of threshold is an analytical decision that must be reported
A metadata CSV that maps files to experimental conditions lets you build a tidy dataset by applying a duration function across all recording sessions
